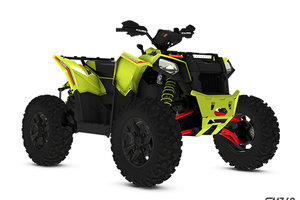

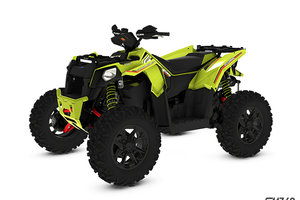

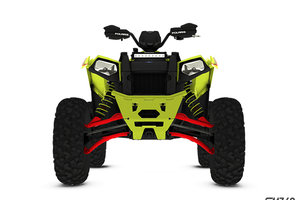

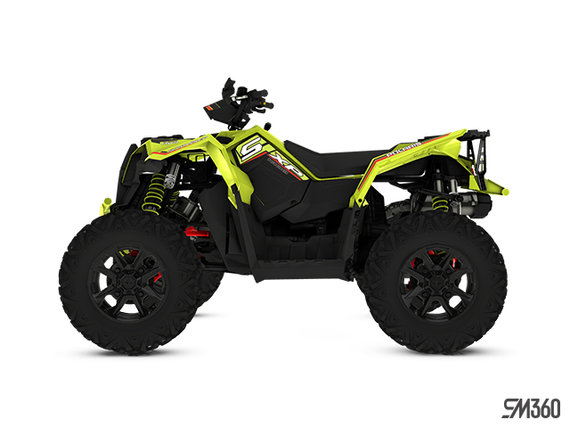

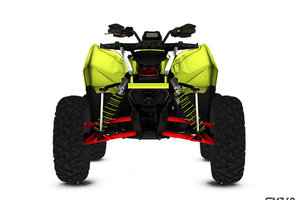

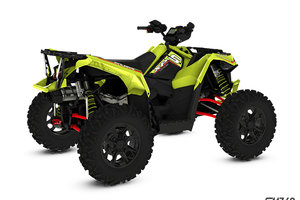

2024 Sportsman Scrambler XP 1000 S
Exterior Color
Lifted Lime
LEGEND:
S = Series O = Optional
Brakes
S
Parking Brake - Park In-Transmission / Lockable Hand Lever
S
Brake System Type - Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
S
Engine Braking System (EBS)
ENGINE/DRIVETRAIN
S
Cooling - Liquid
S
Fuel Capacity - 5.25 gal (19.9 L)
S
Cylinders Displacement - 2 / 952 cc
S
Engine Type - ProStar 4-Stroke SOHC Twin Cylinder
S
Horsepower - 89 HP
S
Drive System Type - One Touch On-Demand AWD/2WD
S
Fuel System/Battery - Electronic Fuel Injection / 400 CCA
S
Transmission/Final Drive - Automatic PVT P/R/N/L/H In-line Shifting
Dimensions
S
Payload Capacity - 290 lb (132 kg)
S
Seat Height (Laden) - 37 in (94 cm)
S
Ground Clearance - 14.5 in (36.8 cm)
S
Overall Vehicle Size (L x W x H) - 82.5 x 55 x 49.5 in (209.5 x 140 x 125.7 cm)
S
Wheelbase - 57.4 in (145.8 cm)
S
Dry Weight - 881 lb (401 kg)
S
Front/Rear Rack - 25 lb / 50 lb (11.3 kg / 22.7 kg)
Tires/Wheels
S
Rear Tires - 27 x 9 Duro PowerGrip II
S
Front Tires - 27 x 9 Duro PowerGrip II
S
Wheels - 12 in Aluminum
S
Electronic Power Steering - Multi Select EPS
Additional Specifications
S
Instrumentation - All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock
S
Lighting - Dual 65W High Beams, Dual 50w Low Beam Headlight
S
Cargo System - Lock & Ride, 1 Gal (4 L) Rear Storage
S
Other Standard Features - Pro Armor Light Bar, Front Bumper, Walker Evans 3-Way Adjustable Shocks, Painted Plastics, Painted Springs, 12 Volt Power Plug, Battery Charger, Pre-Wired for Winch and Hand/Thumb Warmers, Cut and Sew Seat
Suspension
S
Rear Suspension - Sealed Dual A-Arm Rolled IRS, 14 in (35.6 cm) Travel
S
Front Suspension - Sealed High Clearance Arched Dual A-Arm 12.5 in (29.2 cm) Travel
